SSA lever electrical connectors are innovative new wiring connection systems for cable connectors. The connector ensuring practical, fast and safe connections for different types and sizes of conductors. It is a connection solution for solid, stranded and fine-stranded conductors. The integrated lever acts on a spring-loaded sturdy clamp, preventing a connected conductor from accidentally become loose or damaged by fastening. The connectors allow for connecting, disconnect and reconnection in seconds, with no tools other than a wire stripper. A test port in the connector allows for testing of the system in the connector without disconnecting. Application: Rated voltage: 400V Rated surge voltage: 4KV Nominal current: 32A Solid wire sizes: 0.08 to 2.5 mm2. / 28 to 12 AWG Stranded wire sizes: 0.08 to 4 mm2. / 28 to 12 AWG Required conductor striped length: 9to 10 mm, length indicator on the back of the connector Material: Handle: Nylon flame retardant high-temperature resistance Melting point: 246 ° Shell: PA66 flame retardant high-temperature resistance, Melting point: 260 ° Conductive material: Copper with tin electroplated Spring material: Nickel-chromium alloy Product size: - VSE 412 – 2 pin single pole connector – 20.5x12.4x14.5mm (LxWxH) - VSE 414 – 4 pin single pole connector – 20.5x22x14.5mm (LxWxH)

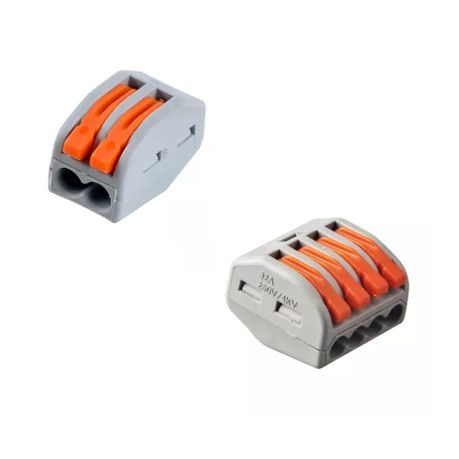

10pc Grey Compact Quick Lever Spring Electrical connector. 2 and 4Pin This 10pc grey compact quick lever spring electrical connector. 2 and 4pin is just what you need to get the job done with ease. Key Features: - Durable and built to last - User-friendly and compact - Made with quality components Specifications: - Category: See listing - Material: Standard high-quality build - Brand: Souk SA

What's in the box

• 5 x VSE-412A – 2 pin connector
• 5 x VSE-414A – 4 pin connector
